# XAVC-Intra/XAVC-L

<figure><img src="/files/IpOg2uS8qrXhaZrsoKP5" alt=""><figcaption></figcaption></figure>

*(Intel CPU Required)*

These export options are available **only on systems with Intel CPUs**.\
Note: Some codec profiles may be **disabled** depending on the **frame rate** of the source media.

***

**Export Codec Options**

**XAVC-Intra:**

* **XAVC 4K Intra**\
  ▸ Class480 CBG\
  ▸ Class480 VBR\
  ▸ Class300 CBG\
  ▸ Class300 VBR
* **XAVC QFHD Intra**\
  ▸ Class480 CBG\
  ▸ Class480 VBR\
  ▸ Class300 CBG\
  ▸ Class300 VBR
* **XAVC 2K Intra**\
  ▸ Class100 CBG\
  ▸ Class100 VBR
* **XAVC HD Intra @ 1080p**\
  ▸ Class100\
  ▸ Class50 *(4:2:0)*
* **XAVC HD Intra @ 1080i**\
  ▸ Class100\
  ▸ Class50 *(4:2:0)*
* **XAVC HD Intra @ 720p**\
  ▸ Class100

***

**XAVC-Long GOP:**

* **XAVC QFHD Long422**\
  ▸ 200 Mbps *(4:2:2)*\
  ▸ 140 Mbps *(4:2:2)*\
  ▸ 100 Mbps *(4:2:2)*
* **XAVC QFHD Long**\
  ▸ 150 Mbps *(4:2:0)*\
  ▸ 100 Mbps *(4:2:0)*\
  ▸ 60 Mbps *(4:2:0)*
* **XAVC HD Long422 @ 1080p**\
  ▸ 50 Mbps\
  ▸ 35 Mbps\
  ▸ 25 Mbps
* **XAVC HD Long422 @ 1080i**\
  ▸ 50 Mbps\
  ▸ 35 Mbps\
  ▸ 25 Mbps
* **XAVC HD Long422 @ 720p**\
  ▸ 50 Mbps

***

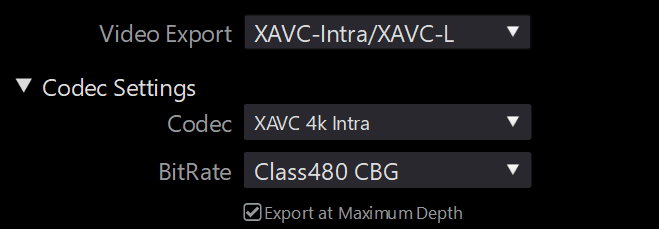

**Bitrate Selection**

The **BitRate** dropdown will provide bitrate options based on the selected codec, resolution, and chroma subsampling (4:2:2 or 4:2:0).\
See the codec breakdown above for reference.

***

**Export at Maximum Depth**

When enabled, this option ensures the exported file uses the **highest bit depth** supported by both the source file and the selected XAVC profile.
